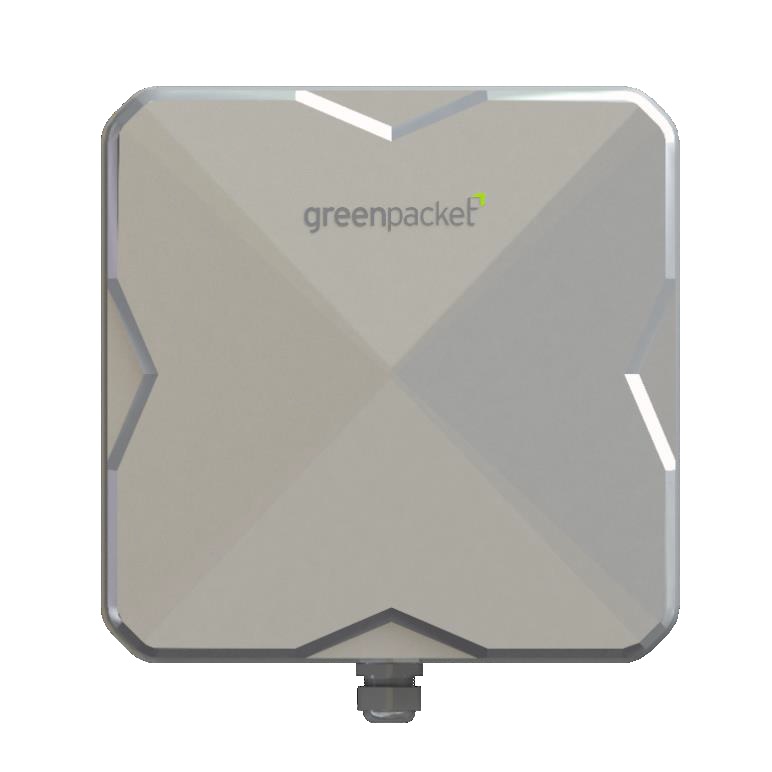

SWAN LTE 3,7 GHz - exteriérová anténa GreenPacket OH-735 pre príjem LTE signálu operátora SWAN na frekvencii 3.7 GHz.
Objednávať môžu iba zmluvní partneri SWAN!

Rozmery 288 (H)x 288 (W)x 88 (T) mm
Hmotnosť 2,5 Kg
Farba biela


OVERVIEW
GreePacket OH-735 comes with double system capacity by either 4x4 MIMO or Carrier Aggregation; providing increased data rate, downlink up to 300 Mbps.

4x4 MIMO technology transmits 4 signal streams at the same time, using 4 antenna, over the same frequency. For operator who has limited spectrum, it helps make the most of spectral efficiency (bps/ MHz) and improve data capacity as well.

A high quality patch antenna is integrated inside to ensure stable connectivity and extended coverage. Peak gain can reach 16 dBi if it is pure 3.4~3.8GHz model.

OH-735 is compliant with IP-66 (Ingress Protection ratings), and its operating temperature is from -30 to +55 degree C. All those factors contribute to a rugged yet cost-effective solution to operate in extreme weather condition.

BASIC DESCRIPTION
3GPP Release Version
Release 10
UE Category
Cat. 5, DL MIMO 4x4
Cat. 6, 2CA
DL up to 300 Mbps
LTE supported bands
TDD B38, B41 (or B40), B42, B43
Different band combination may result in extra cost.
For details, please contact us.
FDD B3, 7
CA Combination
Inter-Band CA
B3-B7, B3-B38, B3-B40, B3-B41, B3-B42, B3-B43, B7-B38, B7-B40, B7-B41, B7-B42, B7-B43, B38-B40, B38-B41, B38-B42, B38-B43, B41-B42, B41-B43, B42-B43
Intra-Band CA
Band 3/7/38/41 (or 40) /42/43.
B3-B3, B7-B7, B38-B38, B40-B40, B41-B41, B42-B42, B43-B43
DL MIMO 4x4
Band 3/7/38/41 (or 40) /42/43
Ethernet port
Gigabit RJ-45 port x 1
Antenna Number 4
Antenna Gain
Peak gain 16dBi
Pure 3.4~3.8GHz model.
LED Indicators
Power, SIM/ Internet, LAN, Signal Strength x 4
8 LEDs in total
Reset/ Reboot button
Tact switch
In side the housing
Power supply
Input: Universal range 100~240VAC
Output: 12V/ 2A DC
WG-1200
Indoor unit, Wi-Fi VoIP Router
11 ac/b/g/n compliant
WG-1200 is optional item.
For details, please see
3. Appendix.
Gigabit WAN RJ-45 port x1 (for PoE injector)
Fast Ethernet LAN RJ-45x 1
RJ-11 port x 1
LED indicator:
Phone, LAN, WAN, WLAN
