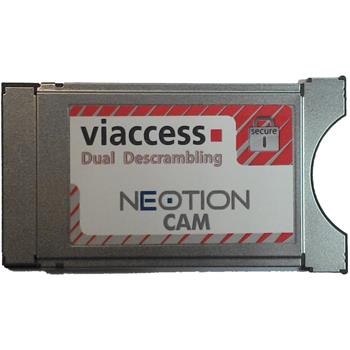

CA modul Neotion Viaccess DUAL CAM (CI)

VIACCESS dual CA ACS 3.x modul

Vlastnosti:

1. Možnosť dvojitého dekódovania: sledujte film a zároveň nahrávajte program na inom kanáli.
2. Viacjazyčné menu (Anglicky, Francúzsky, Nemecky…).

Technická špecifikácia:

1. Stream Type supported: MPEG-2, MPEG-4, SD and HD, All Audio Type (MPEG2, AAC, HE AAC, Dolby, etc)
2. Private Data
3. Teletext

Interfacing:

1. Plug-and-Play & User Friendly
2. DVB-CI high level MMI compliant
3. Languages: English (more on demand)

Standards:


1. DVB Common Interface standard and PCMCIA
2. ISO/IEC EN50221 compliant
3. Smart Card: full ISO 7816-3 (T=0) compliant
4. RoHS compliant directive 2002/95/EC

OTA:

1. Upgrade from MPEG transport stream over the air
2. DVB SSU compliant

Memory:

1. On chip eDRAM: 16Mbits
2. Off chip Serial Flash: 16Mbits

Security:

1. VIACCESS-ORCATM Conditional Access System embedded (for MPEG-2 or MPEG-4, SD & HD Pay TV services)
2. Unique and protected Authentication ID
3. Hardware crypto accelerators
4. Secure Chipset for application such as pairing (anti card sharing / anti control word sharing)
5. On chip OTP

Processing:

1. ARM7TM @ 126MHz
2. 8K I-cache and 8K D-cache
3. 8 DVB-CSA descrambler up to 64 PID
4. Section Filters Transport packet filters up to 32 PID

Size, Weight & Power supply:

1. PCMCIA Type II
2. 46g
3. 5 volts, from any DVB-CI host
