Anténa terestriálna + LTE-filter FRACARRO TAU
Zaradenie produktu
Poslať info
Otázka k tomuto produktu
Našli ste inde na internete nižšiu cenu?
Odoslať informáciu o produktu známemu
Našli ste chybu?
Parametre
Parametre antény |
|
---|---|
Parametre antény | Pasívna, LTE filter |
Typ | Yagi |
Facebook Diskusia
Najpredávanejšie produkty
- CA modul SMIT Irdeto Skylink Ready
- Satelitný prijímač DIGI SLOVAKIA - KAON NA1170 USB DVB-S (NAGRA)
- LNB Quad Inverto Red Extended
- Satelitný prijímač DVB-S/S2 Amiko Mini HD 265
- Satelitný Skylink Ready prijímač DVB-S/S2 GoSAT GS 7060HDi
- Alma iHD Plustelka
- SMART KARTA DIGI SLOVAKIA SAT
- Merací prístroj ROVER HD TAB 900 PLUS
- Satelitný prijímač DVB-S/S2 Amiko HD 8155
- Satelitný 4K prijímač DVB-S/S2 VU+ ZERO 4K Black
Aktuality
Podrobnosti o produkte
Vlastnosti

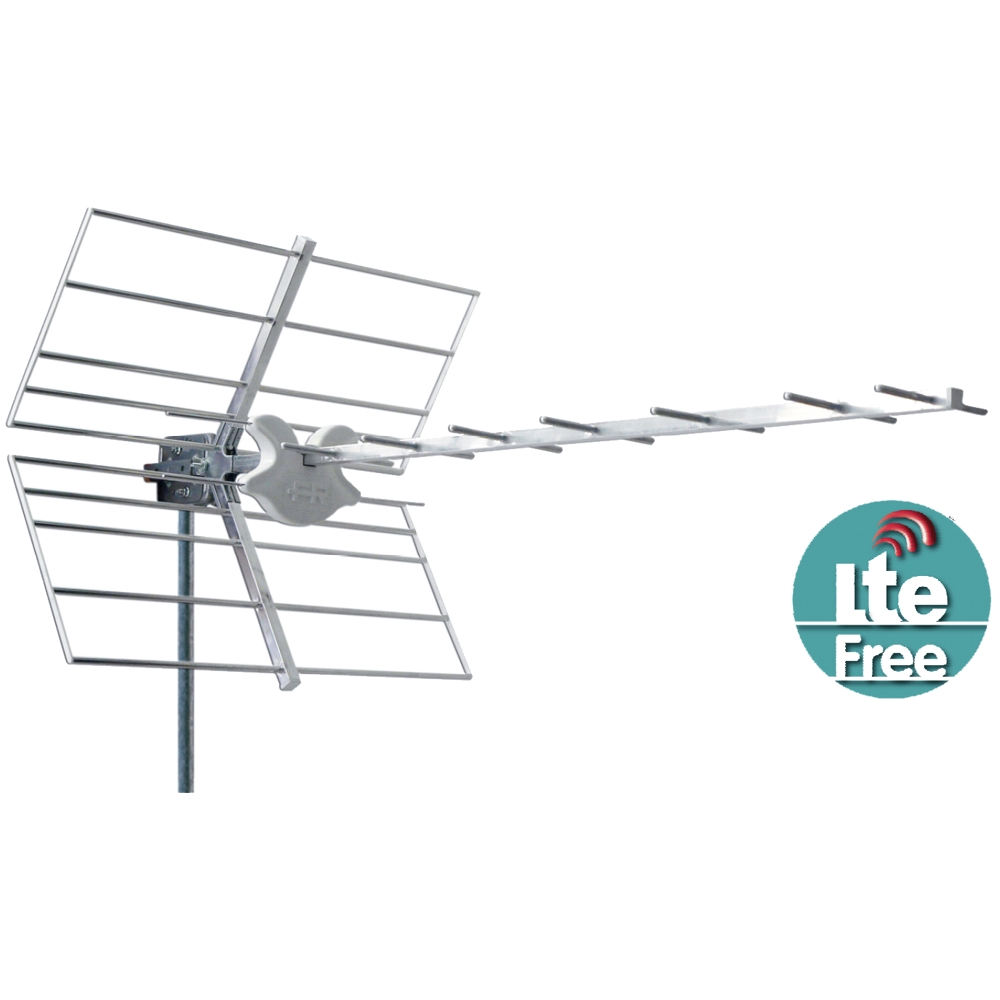

Yagi aerial designed to reduce the impact of LTE transmissions within the TV band.
This aerial includes a SAW filter built into the balun giving a high selectivity of 40dB at 20MHz.
Pre-assembled aerial: elements, mast mount, reflector clamp and dipole guide.
Fast and secure grid and dipole insertion onto the preassembled support.
Technická špecifikácia
Elements
7
Band
UHF
Channels
E21 - E60 (Europe)
Bandwidth
470 - 790 MHz
Maximum gain
14 dBi
Front-to-back ratio
38 dB
Return loss
-18 dB
Beamwidth (-3dB)
+/- 30°
Impedance
75 Ohm
Dimensions
1170x497 cm (LxW)
Maximum mast diameter
60 mm
Wind load at 120Km/h (720N/m2)
5.3 Kg (51.94N)
Connector Type
F
Accessories
Horizontal polarisation Included
Horizontal polarisation with tilt adj. Included
Vertical polarisation Included
Vertical polarisation with tilt adj. Included
FRACARRO TAU LTE KILLER PLUS order code 213104
